LYNCH STANDARD VALVE PACKAGES
Selector Valve
STANDARD SPECIFICATIONS
Standard Materials:
Aluminum or Ductile Iron.
Max Pressure:
Up to 5000 PSI.
Coil Ranges:
14 VDC or 28 VDC & 115 VAC.
Connector Type:
ISO/DIN 43650 Form A Connector & Deutsch DT04-2P Connector.
Configuration Options:
3/2 & 6/2.
Max Flow:
60 or 120 GPM Versions
Seals:
Buna "N" (standard), Viton or EPDM (optional on request)

APPLICATIONS

Generic machine equipment
Mobile - Agricultural, Construction, Marine, Forestry, Mining and other mobile equipment.
Generic pressing machine
Industrial - Conveyor belts, Material Handling.

SELECTOR VALVES

Lynch Selector valves are available in 3 way and 6 way, two position configurations. Selector valves also known as diverter valves are used to divert flow between two separate circuits or actuators. This allows additional functions to be added, expanding the existing hydraulic system. Selector valves differ from hammer valves as hammer valves provide priority flow to the primary system and excess flow to the secondary system. Selector valves divert all the flow to one system or the other. These selector valves have electric solenoid operation of piloted balanced poppet logic elements with external pilot and drain connections for high flow, low leakage, bidirectional operation. Useful in both mobile and industrial applications with multiple voltage and connector options.

FEATURES AND BENEFITS

  • A minimum 300 PSI pilot pressure is required.
  • Any back pressure at the drain port is directly additive to the pilot pressure required.
  • Valve will reseat when pilot pressure falls below 145 PSI.
  • Alternate flow path configurations available as non-standard options upon request.
  • An effective solution for expanding system functions.

BLOCK DIAGRAM

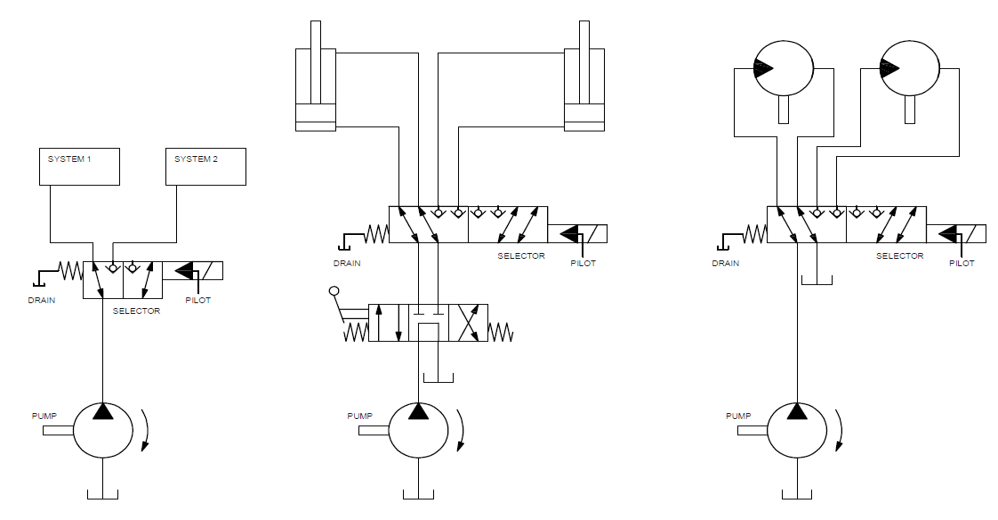

Selector valve block diagram

BUILD A SELECTOR VALVE

Type
Type:
Unselected
--
Unselected
--
3 Way
3W
6 Way
6W
Circuit
Circuit:
Unselected
--
Unselected
--
PA Circuit
PA
Material
Material:
Unselected
-
Unselected
-
Aluminum
A
Ductile Iron
D
Capacity
Capacity & Port Size:
Unselected
-----
Unselected
-----
60 GPM, SAE#16
T23SH
120 GPM, SAE#20
T24SI
Mounting
Mounting:
Unselected
-
Unselected
-
Standard Mounting
U
Config
Config:
Unselected
---
Unselected
---
Standard Configuration
XCD
Seals
Seals:
Unselected
-
Unselected
-
Buna
N
Solenoid Actuation
Solenoid Actuation:
Unselected
---
Unselected
---
DIN 43650-Form A, 12 VDC
212
Deutsch DT04-2P, 14 VDC
914
DIN 43650-Form A, 24 VDC
224
Deutsch DT04-2P, 28 VDC
928
DIN 43650-Form A, 115 VAC
211
Welcome to the Part Number Generator
The part number you have selected is only available by special order. Please contact your Lynch representative for more details.
The part number you have selected is not a standard configuration. Please contact your Lynch representative for more details.
